Stay Compliant. Stay Operational. Stay Ahead of Air Pollution Norms.

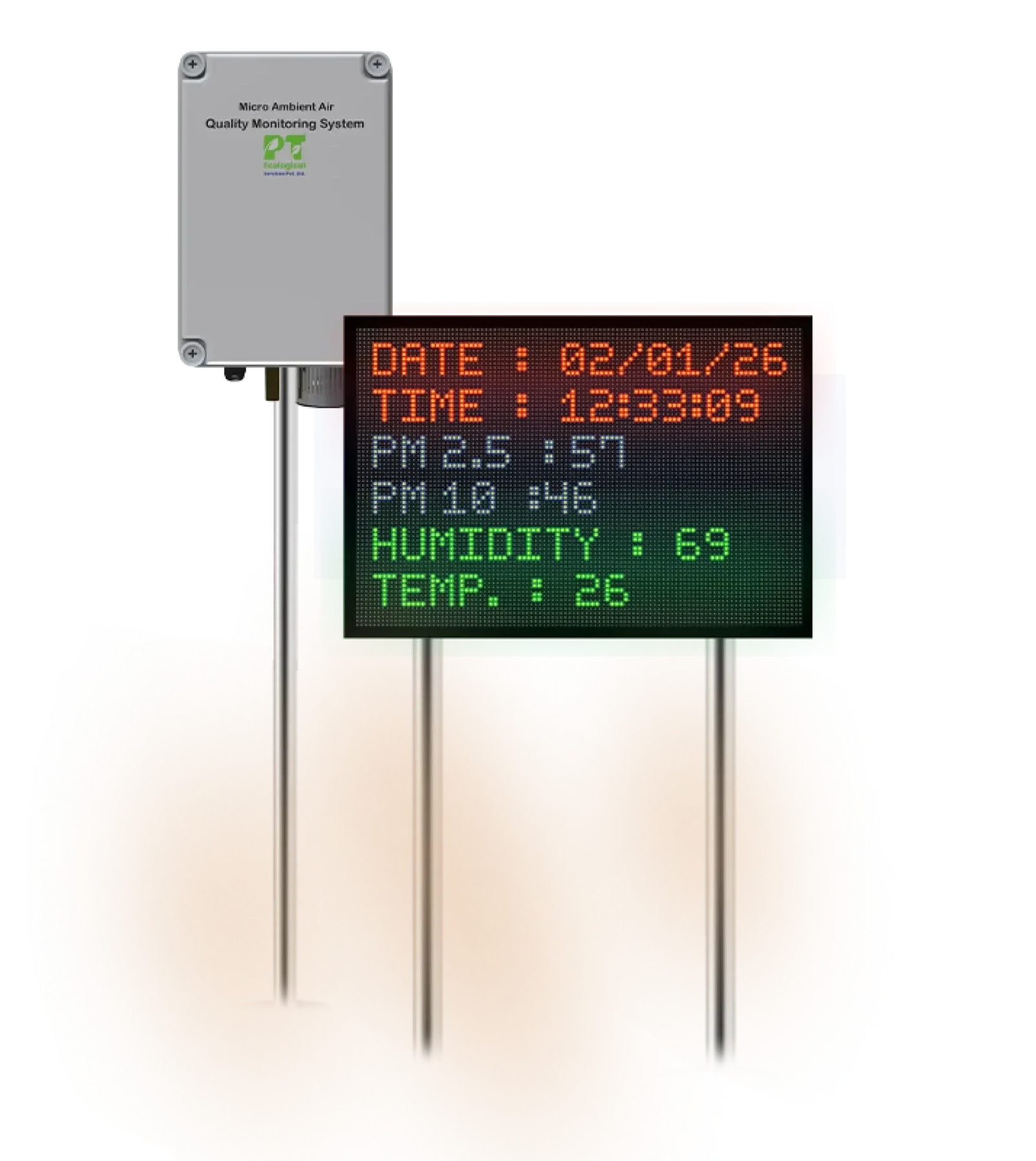

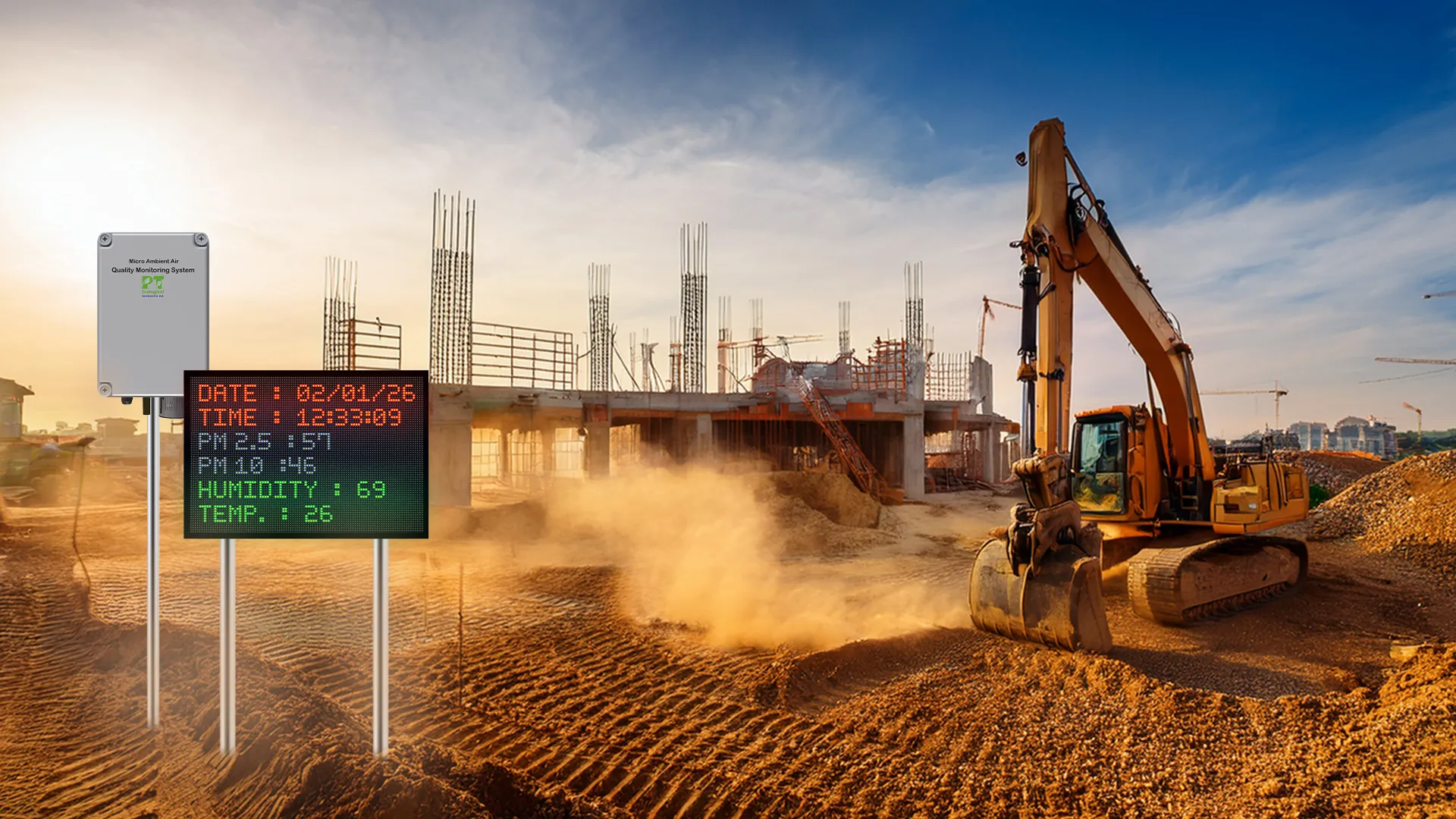

A real-time Micro Ambient Air Quality Monitoring System powered by SPS30 precision sensors, designed for construction sites, smart cities, industries, and public spaces.
Delivers live AQI data, automatic central server connectivity, and uninterrupted compliance with CPCB, MPCB, MCGM, and municipal guidelines.
With rapid urbanization and infrastructure growth, ambient air quality deterioration is no longer a future risk, it is a present regulatory challenge The Central Pollution Control Board (CPCB) and the Municipal Corporation of Greater Mumbai (MCGM) have made it mandatory for construction sites to install ambient air quality monitoring systems to track dust and particulate pollution generated during construction activities.
Micro-location air monitoring is now critical for:
Manual reporting is no longer accepted. Real-time, continuous monitoring has become a regulatory requirement to ensure transparency, compliance, and environmental responsibility in urban development.
As reported to the Bombay High Court:

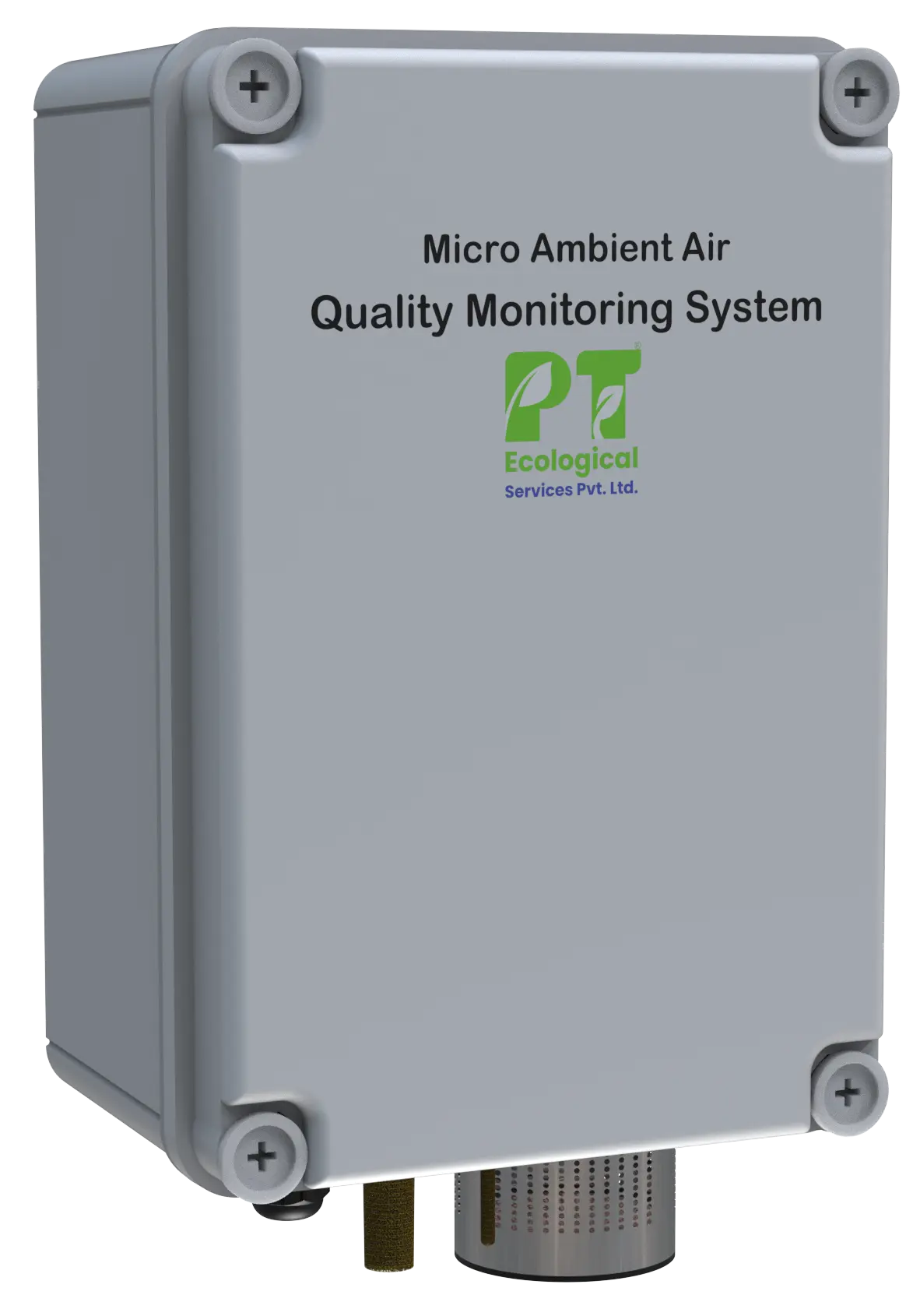

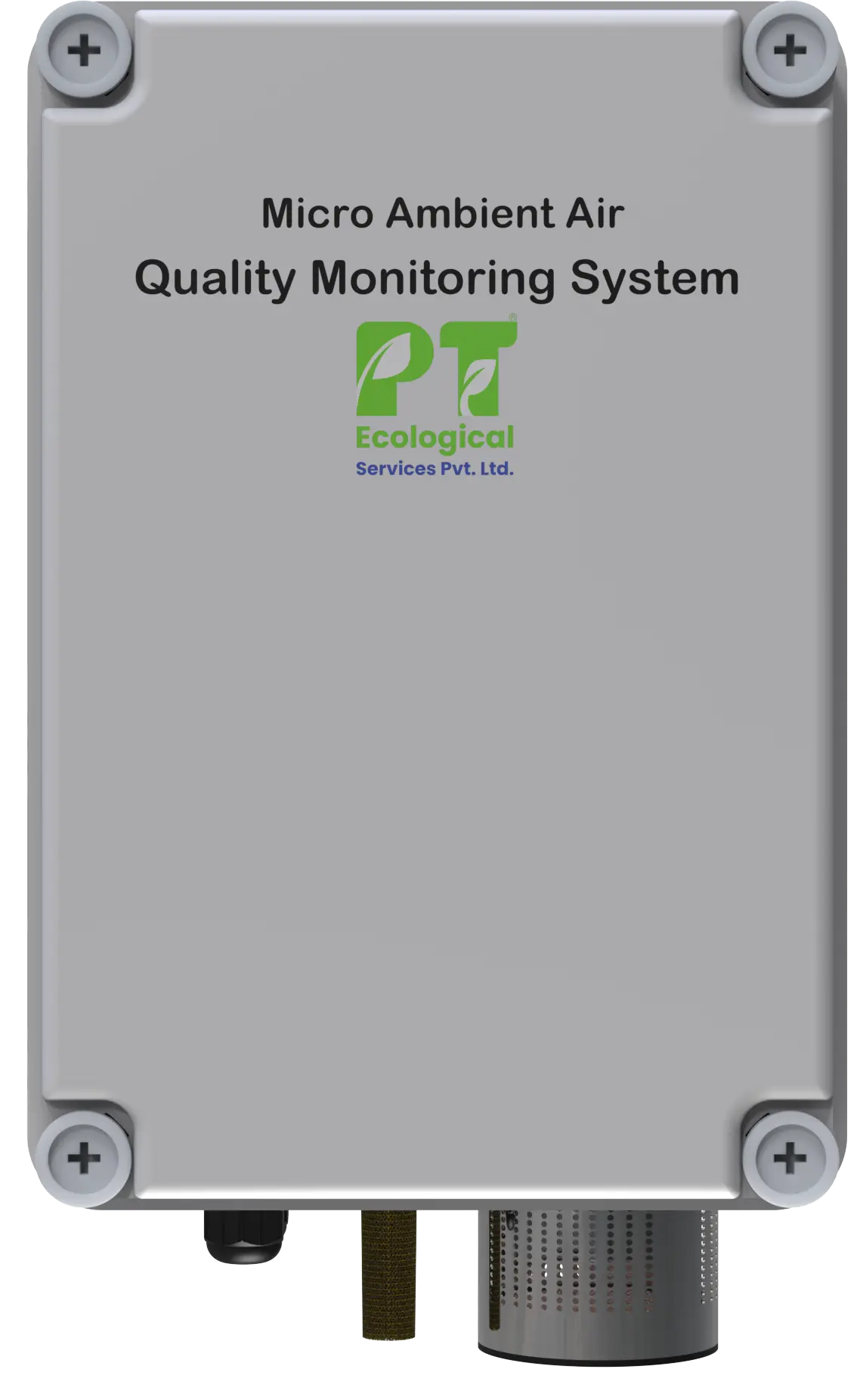

A Micro Ambient Air Quality Monitoring System (M-AAQMS) is a compact, sensor-based solution designed to measure localized air pollution levels instead of broad regional averages.
PT Ecological’s M-AAQMS integrates the Sensirion SPS30 laser scattering sensor, globally trusted for durability and accuracy.
Built for continuous, long-term deployments, SPS30 ensures reliable performance even in harsh conditions.
Detects PM1.0, PM2.5, PM4.0, PM10
High correlation accuracy (R² > 0.7)
Stable output with minimal drift
Low maintenance & extended operational life
Cleaner data. Faster decisions. Stronger compliance.
Parameter | Specification |
Measurement Range | PM2.5 & PM10: 0–1000 µg/m³ |
Accuracy | R² > 0.7 |
Response Time | ≤10 seconds |
Measuring Principle | Laser Light Scattering |
Communication | RS485, TCP/IP |
Power Consumption | ≤500 mA @ 12V |
Operating Conditions | 10°C–70°C, up to 95% RH |
Sensor Lifespan | Up to 30 months |
1
Ambient air is continuously sampled using SPS30 laser sensors.
2
Particle size data is converted into real-time mass concentration values.
3
Data is transmitted via RS485 / TCP-IP to cloud servers.
4
Live AQI, alerts, trends & reports accessible remotely.
5
Data synced with municipal & pollution control board portals.
Site assessment by PT technical team
Optimal mounting location identified
Electrical & network integration
Central server configuration
Live data verification
Compliance confirmation
1
2
3
4
5
(You can list actual project names or zones here)
Compliance doesn’t end at installation.
One system. One vendor. Full accountability.
PM1.0, PM2.5, PM4.0, and PM10 using laser scattering technology.
Yes. It is designed for regulatory-ready, real-time compliance.
Yes. Its compact, low-noise design makes it ideal for sensitive zones.
Yes. Live dashboards, cloud access, alerts & reports are available.
Yes. Supports central server & IoT integrations.
Alerts are generated immediately, enabling quick corrective action.
